Visualizations make your data come to life! You can create Visualizations from any results of a query. On Dune you can create a variety of different graphs and charts to visualize your data.

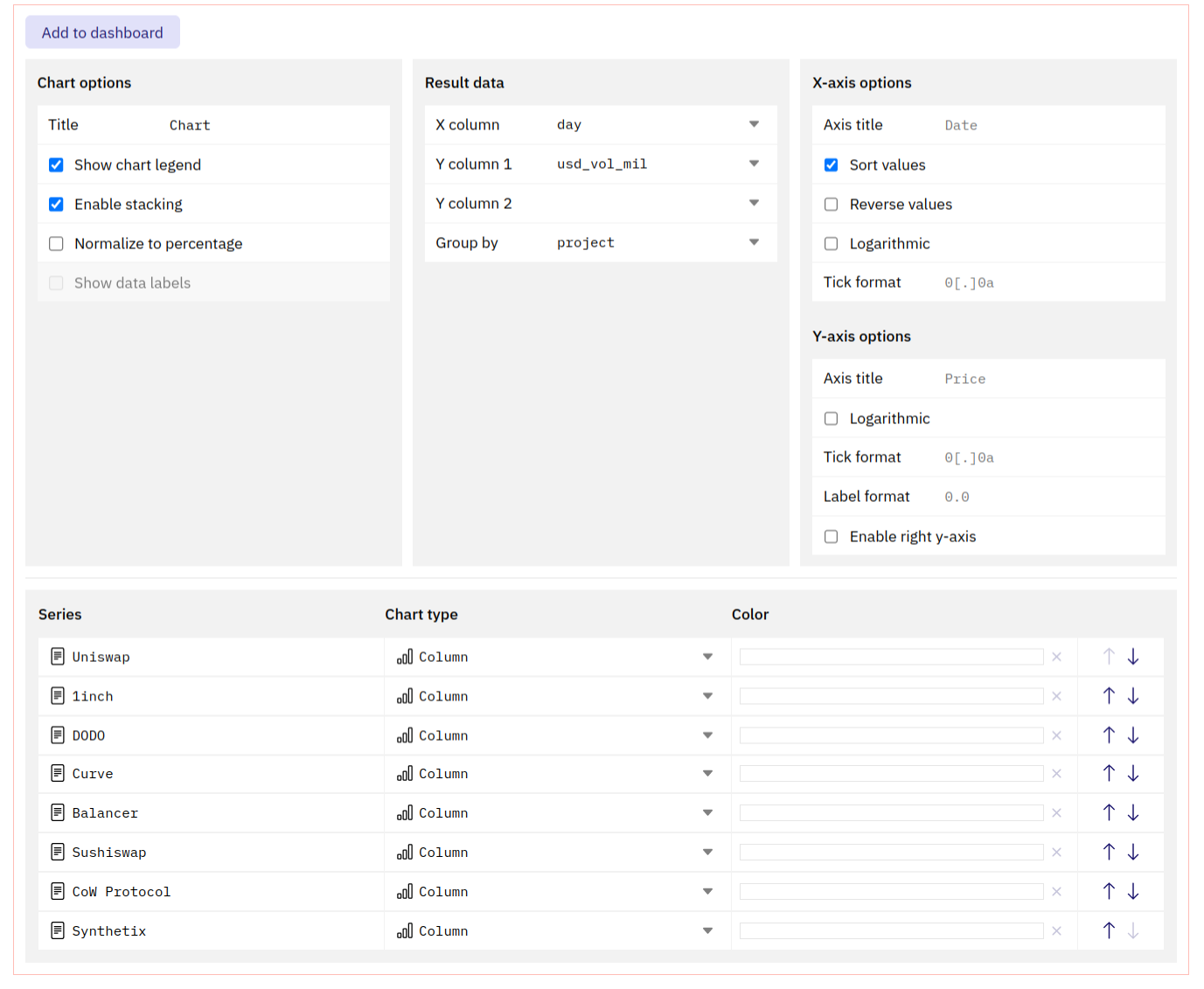

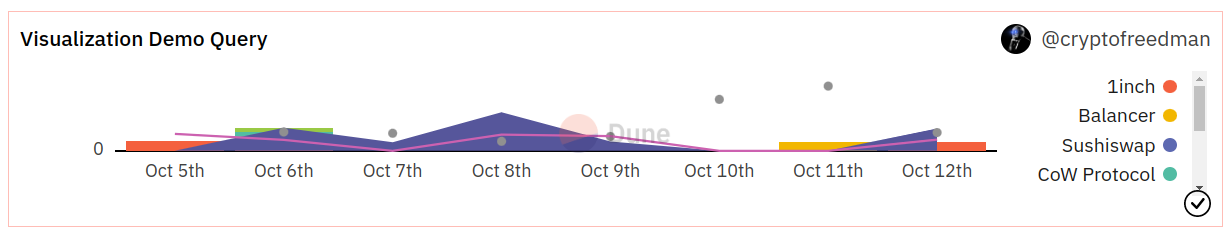

You can mix all of these graph types in one Visualization, as long as your base graph isn’t a Pie chart. All graph Visualizations share a common set of editing options, see the tabs below for how to configure each. all visualization configuration options

​

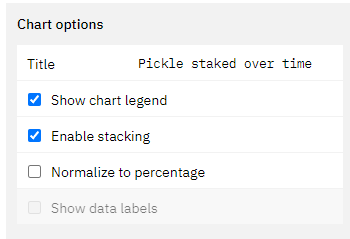

Visualization Configuration Options

This section allows you to define how to display your data.see explanations belowTitle
  • The title will appear in all instances of this graph prominently at the top.
  • The graph will always keep the name of the Query, even if you edit this.
Show chart legend
  • Ticking this box will enable or disable the legend for the chart.
Enable stacking
  • If applicable, ticking this box will stack the chart values on top of each other based on the x-axis values.
  • If this is not turned on, the values will be plotted individually on the y-axis.
  • The calculation underpinning this will always group the value corresponding to one value on the x-axis. Make sure your data is clean in able for this to work (avoid gaps in your data).
Normalize to percentage data
  • This will normalize the chart to display percentage values of the chosen data table.
  • The calculation underpinning this will always group the value corresponding to one value on the x-axis. Make sure your data is clean in able for this to work (avoid gaps in your data).
Show data labels
  • Ticking this box leads to the display of the individual datapoints inside of the graph.
  • This only makes sense in cases where you have few datapoints that are spread out far enough from each other to not overlap.

​
X/Y-axis Tick and Label formats

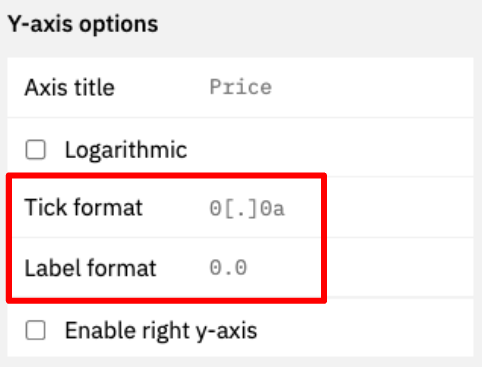

image Tick formats change how numeric values and axis labels in your graphs are displayed. Here’s how to format them:
Starting ValueTick/Label formatOutputDescription
1256784.3745[blank]1256784.3745000Displays the number 7 decimal precision.
1256784.374501256784Displays only the integer.
1256784.37450,01,256,784Only displays the integer with comma separation.
1256784.37450,0.001,256,784.38Displays the number with [x] decimal precision, where [x] is the number of 0 you add after the decimal point.
1256784.37450.0a1.2MDisplays the number with [x] precision and a letter based on the number’s 1e[y] power (eg “m” for million, “b” for billion)
1256784.3745$0.0a$1.2MAdds a ”$” to the number. Works with all formats above though use of the a suffix is recommended. Currently the only ”$” is the only supported currency symbol.
